RfPatrol Mk2
Portable Threat Detection, Redefined
Item Number: 112
NSN: 5865-66-167-4795
The RfPatrol Mk2 is a next-generation wearable solution providing true airspace awareness for military, law enforcement, and executive security personnel. Compact, intuitive, and highly effective, it ensures full situational awareness providing operators with a decisive advantage.
Advantages
Effective Coverage
360° detection of a wide variety of UAS and remote controllers across all environments.
Passive Device
No unintentional RF transmission, ensuring quiet and safe wearable operation.
Broad Spectrum Detection
Interchangeable antennas provide large blocks of continuous coverage across the radio spectrum.
Features
Wearable Detection
The RfPatrol Mk2 integrates into gear for seamless, on-the-go threat detection without impeding mobility
Aluminum housing for increased durability for extended use in harsh environments
Modular Directional Antennas
Omni-directional antenna covering ISM bands and other commonly used control frequencies
Ease of Use and Integration
No setup required. With a user-friendly interface and portable design, the RfPatrol Mk2 integrates effortlessly into existing operational workflows
AI-Powered Detection
RfPatrol device database stays up to date with changing threat environments via DroneShield’s proprietary AI-driven detection engine
RfPatrol is powered by DroneShield latest SDR scanning technology
Instant visual, audible, or haptic notifications of drone threats
Operating Time
NATO-standard military-grade battery and optimized power consumption design provides 10+ hours of continuous operation
Rechargeable lithium-ion battery with quick-release and reload operation
Accessories
RfPatrol Detection Finding Kit
Magnetic Antenna Kit
Specifications columns-3
RfPatrol Mk2
Unit Weight
800g / 1.76lbs
User Feedback
Visual, haptic, audible
Dimensions
157 x 92 x 51mm / 6.2“ x 3.6“ x 2“ (excluding antennas & attachable battery)
Environment
Operating Temperature
-32º to +60º C / -25.6ºF to +140ºF
Ingress Protection
Rated to IP67
Battery & Power
Features
Rechargeable lithium-ion battery, quick release and reload
Compliance
NATO-standard military grade battery
Battery Nominal Voltage
10.8VDC
Battery Weight
380g / 0.83lbs
Battery Dimensions
>71mm x 41mm x 86mm / 2.8“ x 1.6“ x 3.4“
Operating Time
10 hrs+ (continuous operation)
Pass through charger available for extended use
Shipping
Packaging
Ships in a rugged carry case (IP67)
Carry Case Dimensions
590mm x 220mm x 380mm / 23.2“ x 8.7” x 15“
Total Shipped Weight
12.0kg / 26.46lbs (including carry case)
Warranty
12 months from date of shipment
Longer warranty available on request
Accessories columns-2
RfPatrol Direction Finding Kit
RfPatrol Direction Finding Kit
Gallery gallery

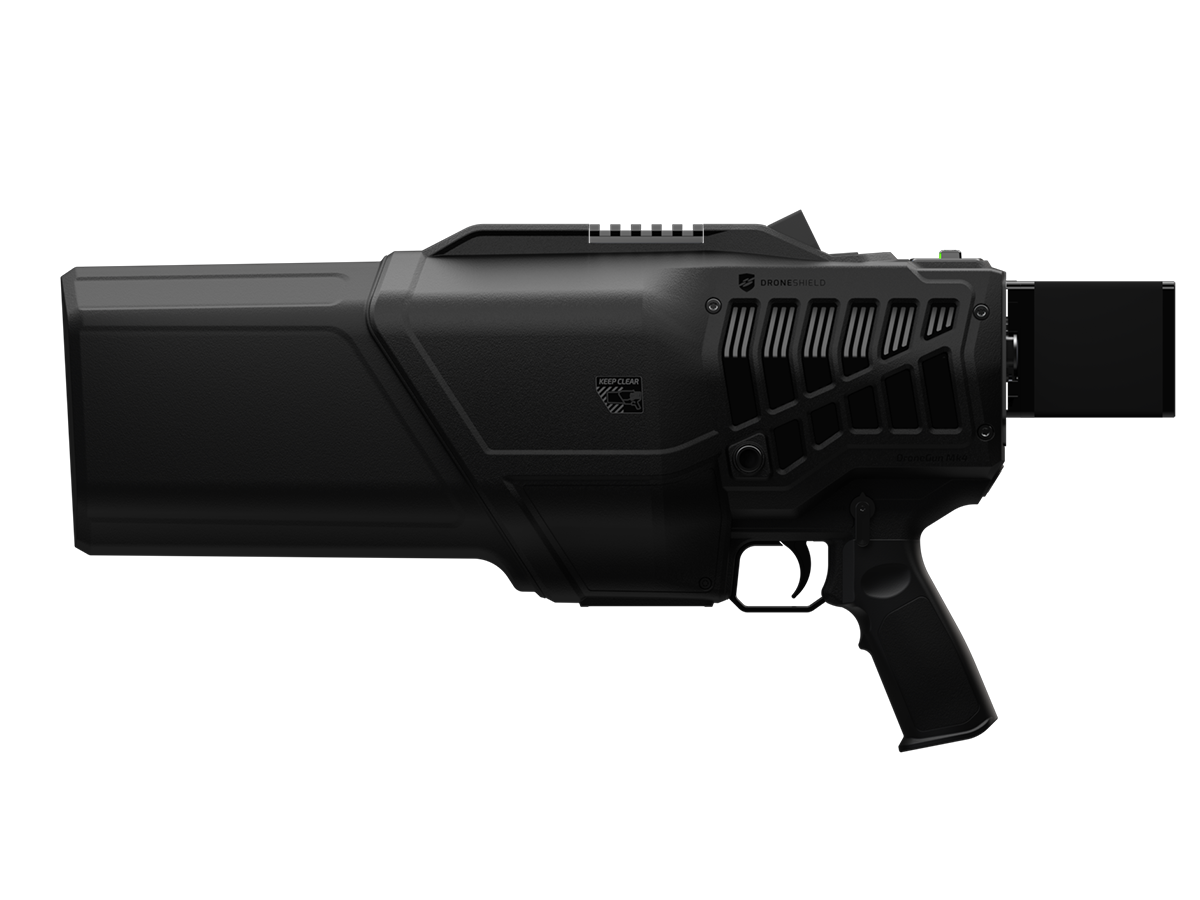

DroneGun Mk4
Ultra-Portable Handheld Countermeasure
Item Number: 550
NSN: 5865-66-167-4802
DroneGun Mk4 delivers advanced counter-drone capabilities in a lightweight, highly portable design. Built for rapid response, it neutralizes unauthorized drones with precision while ensuring minimal disruptions to surrounding environments.
Advantages
Enhanced Effectiveness
Wider range of suitability for various environmental conditions.
Increased Disruption Performance
Maintains compact design, ensuring effective directionality and a safe environment for the operator.
DroneShield Advanced Technology
Integrated electronic modules for compact application, ready for immediate operation out of the box, no software updates required.
Features
Compact, Lightweight, and Durable Design
Optimized for single-operator use with minimal physical strain
Intuitive Controls
LED indicators show “on” for enabled bands and “flash” when disrupting. LEDs can be disabled to suit mission requirements
Pistol grip, safety selector switch, trigger assembly and quick-release battery function
Multi-Band Coverage
Effectively counters a wide range of commercial and military-grade drones
RF disruption activation will interfere with any live video streaming (FPV) back to the remote controller, halting the collection of video footage and intelligence by the UAS (eg. drone) operator
Targeted Defeat
Disrupts control, video, and navigation signals across multiple frequency bands
GNSS (satellite navigation) disruption capability
Operational Effectiveness
NATO-standard battery delivers increased disruption range and effectiveness
Rated to IP67, constructed to provide maximum strength and protection for reliable use in harsh environments
Ease of Use and Integration
No setup required
Top and bottom picatinny rails, along with multiple Quick-Disconnect (QD) sling attachment points, allow for easy adoption into existing operations
Specifications columns-3
DroneGun Mk4
Unit Weight
3.2kg / 7.0lbs (with battery attached)
User Feedback
Visual LEDs
Effective Frequencies
Wide range of ISM bands and GNSS (satellite navigation)
Available Colors
Matte black
Start-up Time:
<3 seconds
Operation Time
> 1 hour (aggregate operational time per charge)
Charger:
Pass-through charger, AC/DC PSU included
Environment
Operating Temperature
-20 ºC to +55 °C / -4ºF to +131ºF
Ingress Protection
Rated to IP67
Battery & Power
Rechargeable lithium-ion battery
NATO military-grade battery (common use)
Quick-release and reload battery operation
Shipping
Packaging
Ships in a rugged carry case (IP67)
Carry Case Dimensions
640 x 220 x 410 mm / 25.20” x 8.66” x 16.14”
Total Shipped Weight
12.0kg/26.46lbs (including carry case)
Warranty
12 months from date of shipment
Longer warranty available on request
Gallery gallery

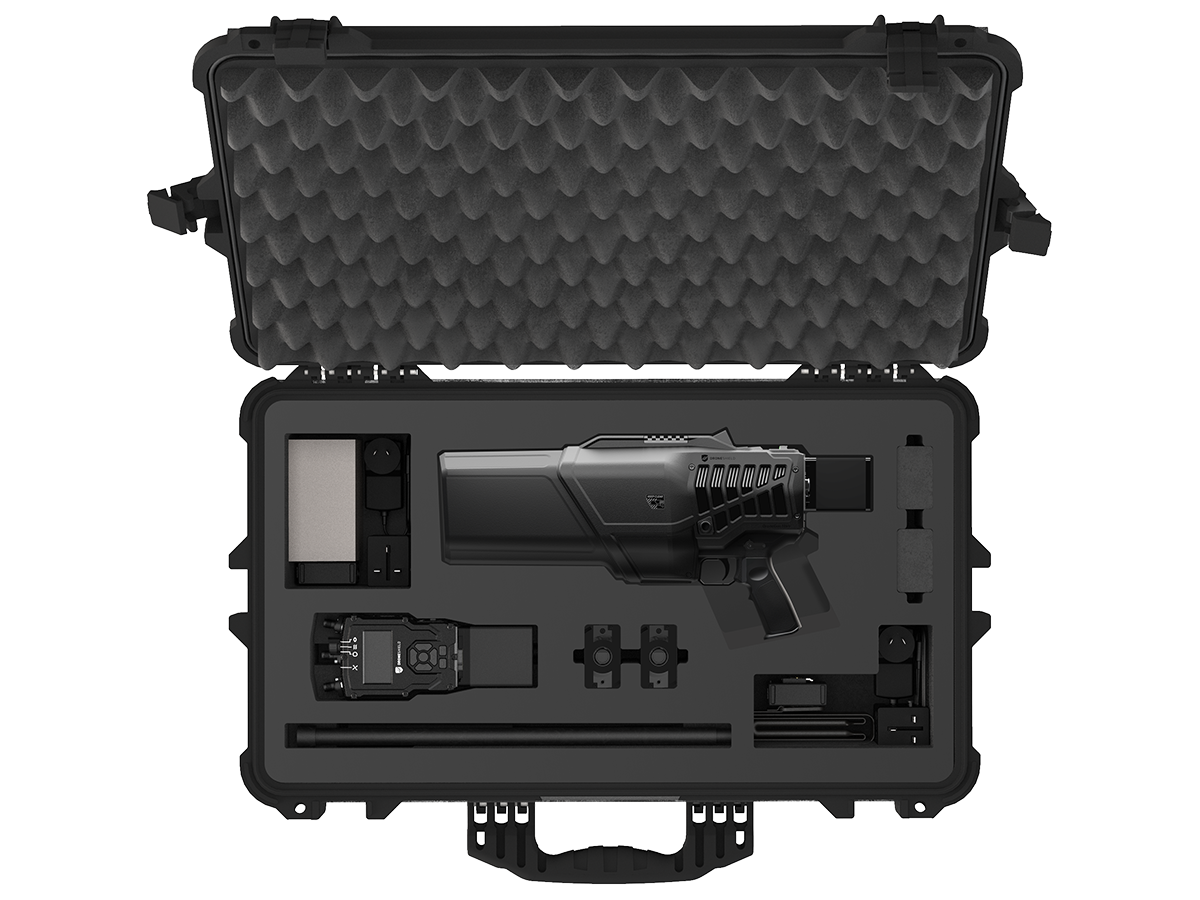

Immediate Response Kit
Rapid Deployable CUxS Solution
Item Number: 116
NSN: 5865-66-167-4802
The Immediate Response Kit (IRK) is a rapidly deployable counter-drone solution designed for mobility and ease of use. Combining DroneShield’s RfPatrol Mk2 (link) for advanced detection and DroneGun Mk4 (link) for defeat capabilities, it enables real-time drone defense in dynamic operational environments.
Advantages
Instant Protection
Enables drone detection and mitigation, ready for immediate operation out of the box.
Mission Versatility
Multi-mission solution in harsh environments.
Situational Awareness
RfPatrol Mk2 combined with DroneGun Mk4, provides true situational awareness giving operators a decisive edge.
Features
Comprehensive Threat Response
Includes both RfPatrol Mk2 for passive detection and DroneGun Mk4 for precision jamming
Intuitive Controls
Designed for intuitive operation with easy to use controls for rapid deployment
LED indicators show “on” for enabled bands and “Flash” when disrupting. LEDs can be disabled to suit mission requirements
Field-Ready Power
Rechargeable batteries support extended missions without reliance on fixed infrastructure
Highly Portable
Packaged for rapid transport and deployment in lightweight, rugged case
Operational Effectiveness
Supplied with omni-directional ISM band antenna, the IRK has no intentional RF transmissions for quiet and safe wearable operation. Additional antenna ports available for capability expansion
Custom antennas provide increased disruption performance while maintaining compact design, ensuring effective directionality and a safe environment for the operator
Ease of Use and Integration
User-friendly interface
Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilizing net warrior-compliant hardware
Specifications DroneGun Mk4 columns-3
DroneGun Mk4
Unit Weight
3.2kg / 7.0lbs (with battery attached)
User Feedback
Visual LEDs
Effective Frequencies
Wide range of ISM bands and GNSS (satellite navigation)
Available Colors
Matte black
Start-up Time:
<3 seconds
Operation Time
> 1 hour (aggregate operational time per charge)
Charger:
Pass-through charger, AC/DC PSU included
Environment
Operating Temperature
-20 ºC to +55 °C / -4ºF to +131ºF
Ingress Protection
Rated to IP67
Battery & Power
Rechargeable lithium-ion battery
NATO military-grade battery (common use)
Quick-release and reload battery operation
Shipping
Packaging
Ships in a rugged carry case (IP67)
Carry Case Dimensions
640 x 220 x 410 mm / 25.20” x 8.66” x 16.14”
Total Shipped Weight
12.0kg / 26.46lbs (including carry case)
Warranty
12 months from date of shipment
Longer warranty available on request
Specifications RfPatrol columns-3
RfPatrol
Unit Weight
800g / 1.76lbs
User Feedback:
Visual, haptic, audible
Dimensions
157 x 92 x 51mm / 6.2“ x 3.6“ x 2“ (excluding antennas & attachable battery)
Environment
Operating Temperature
-32º to +60º C / -25.6ºF to +140ºF
Ingress Protection
Rated to IP67
Battery & Power
Features
Rechargeable lithium-ion battery, quick release and reload
Compliance
NATO-standard military grade battery
Battery Nominal Voltage
10.8VDC
Battery Weight
380g / 0.83lbs
Battery Dimensions
>71mm x 41mm x 86mm / 2.8“ x 1.6“ x 3.4“
Operating Time
10 hrs+ (continuous operation)
Pass through charger available for extended use
Shipping
Packaging
Ships in a rugged carry case (IP67)
Carry Case Dimensions
590mm x 220mm x 380mm / 23.2“ x 8.“7 x 15“
Total Shipped Weight
12.0kg / 26.46lbs (including carry case)
Warranty
12 months from date of shipment Longer warranty available on request
Gallery gallery

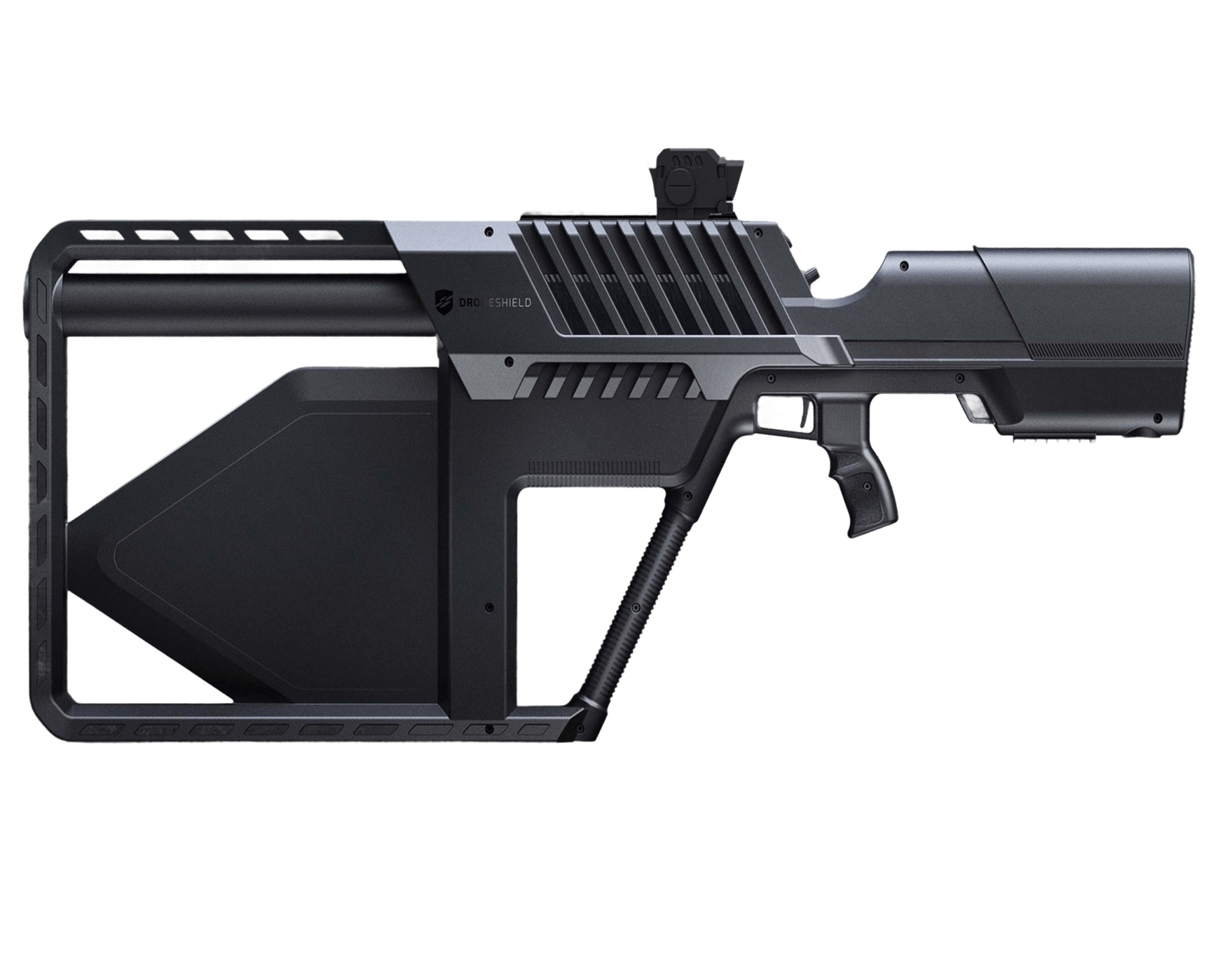

DroneGun Tactical
Portable Threat Long Range, Highly Effective Countermeasure, Redefined
Item Number: 300
NSN: 5895-22-638-3914
DroneGun Tactical provides powerful, long-range counter-drone capability in a robust, easy-to-operate design. The DroneGun tactical neutralizes unauthorized drones with precision, ensuring mission success in complex environments.
Advantages
Long Range Effectiveness
Engages drones at distances to prevent threats before they escalate.
Controlled Response Threat
When disruption is triggered, UAS targets will respond via vertical on the spot landing or return to its remote controller or starting point.
Mission-Ready Power System
Battery-powered with extended operational duration for sustained deployments.
Features
Durable Design
Internal aluminium frame for strength and durability. Engineered with balanced design for extended operational use. Designed with MIL-STD 1913 rails for mounting scope
Intuitive Controls
Rotary dial switch enables selection of active disruption frequencies
Visual feedback provided via LED indicators “on” for enabled bands and “flash” when disrupting
Long Range Coverage
Long range coverage effective in a wide range of environmental conditions
Effectively counters a wide range of commercial and military-grade drones while keeping UAS intact and available for forensic investigation
Targeted Defeat
High performance directional antennas disrupt control, video, and navigation signals across multiple frequency bands
GNSS (satellite navigation) disruption capability
Operational Effectiveness
Custom Antenna Radome designed for effective operation across multiple bands.
Thermal management system built holistically into design
Ease of Use and Integration
Minimal technical training for set up or use
Functions independently or as part of a layered CUAS defense system
Specifications columns-3
DroneGun Tactical
Effective Frequencies:
Wide range of ISM bands, as well as GNSS (satellite navigation)
Unit Weight
7.3kg / 16.0lbs (including 2 x batteries)
User Feedback:
Visual + optional audio
Available Colors:
Matte black, Desert sand
Environment
Operating Temperature
-20 °C to +55°C / -4°F to +131°F
Ingress Protection
Designed to IP54
Battery & Power
Features
Rechargeable Lithium-Ion Battery
Quick release and reload better operation
Compliance
NATO-military approved or commercial options available
Operating Time
2+ hours (aggregate operational time per charge)
Shipping
Packaging
Ships in a rugged carry case (IP67)
Carry Case Dimensions
1200mm x 560mm x 220mm / 47” x 22” x 8.6”
Total Shipped Weight
20.0kg / 44.2lbs (including carry case)
Warranty
12 months from date of shipment
Longer warranty available on request
Gallery gallery
Product Support
Full customer tech support, access to training portal, and option to purchase training packages.
Training
Tailored Training Solutions
Expert training packages are customized to meet the unique needs of each team, ensuring maximum impact and efficiency.Comprehensive Curriculum
We offer a wide range of in-depth training modules, covering everything from basic to advanced topics, ensuring DroneShield users gain the skills they need to succeed.Hands-On Learning Experience
Our interactive, practical training approach helps participants apply new skills immediately, reinforcing learning through real-world scenarios.Flexible Delivery Options
Options include on-site instruction or live virtual sessions, tailored to fit varying schedules and learning preferences.Support and Resources
Access to training materials, tutorials, and follow-up support through our customer portal ensures our users are proficient in the use of our systems.
Technical Support
On-Demand Help
A team of expert tech support specialists is readily available to provide fast, reliable assistance for any technical challenges.Highly Trained Support Staff
Our support team consists of certified specialists with extensive knowledge of our products, ensuring quick and accurate resolutions.Comprehensive Troubleshooting
Whether it’s a simple question or a complex issue, we provide detailed, step-by-step guidance to resolve any problem.Remote Assistance & Onsite Support
Both remote troubleshooting and on-site support options are available to provide maximum flexibility in addressing technical needs.Customer-Centric Solutions
Expert tech support focuses on delivering tailored solutions that align with specific requirements, ensuring satisfaction and continued success with the products.
